Intinor aims to deliver the best and most comprehensive solution for high-quality video over the internet.
Intinor Direkt Series—a modular ecosystem for high-quality, ultra-reliable live video contribution, distribution, and management over the internet and other IP networks.

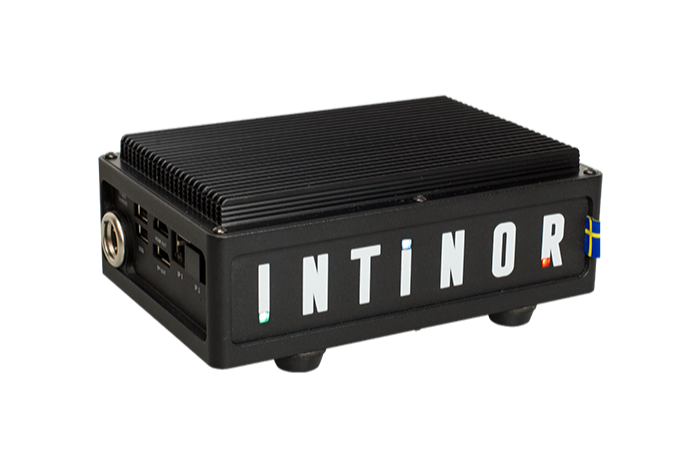

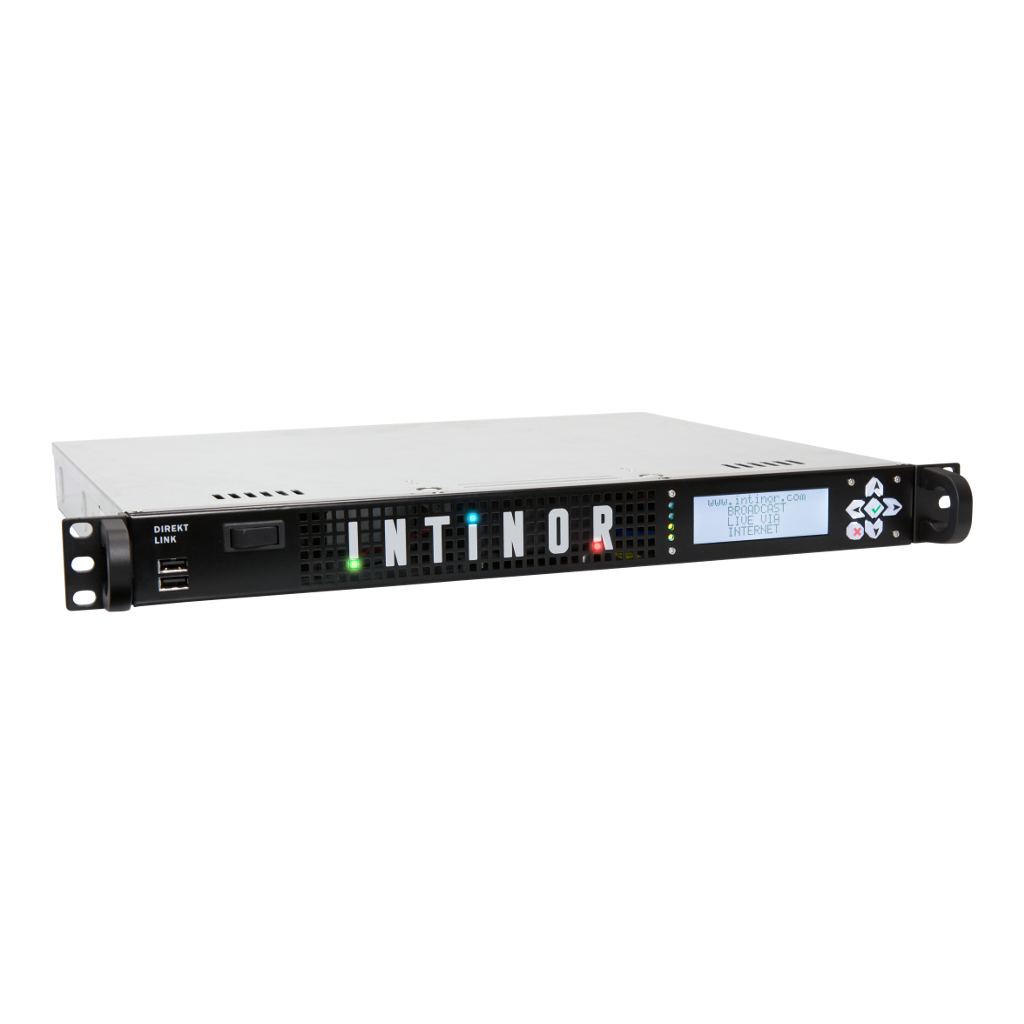

Direkt link
“Ultimate stability, Network Bonding”
Dedicated unit to compress and broadcast high-quality video over the internet and other IP networks
High-Quality Video Over IP
Compress and broadcast high quality video, including NDI®, from a camera or video mixer over the internet, using major transport protocols such as; TCP, UDP, RTP, RTP+FEC, RTMP, RTMPS, SRT, RIST and Intinor’s proprietary transport protocol BIFROST™.
Highly Adaptable
Direkt link can be tailored to the needs of each customer using add-on features and individual adaptations, which makes it extremely flexible and versatile.
Easy Setup
Video from a camera or video mixer is connected to the Direkt link. Compressed video streams are broadcasted to one or more receivers. The configuration can be adjusted using the display and keypad on the encoder, from a local web-interface or via IDM (Intinor Direkt Management). The Direkt link can also record a broadcast to be used for on-demand-video or file based productions.

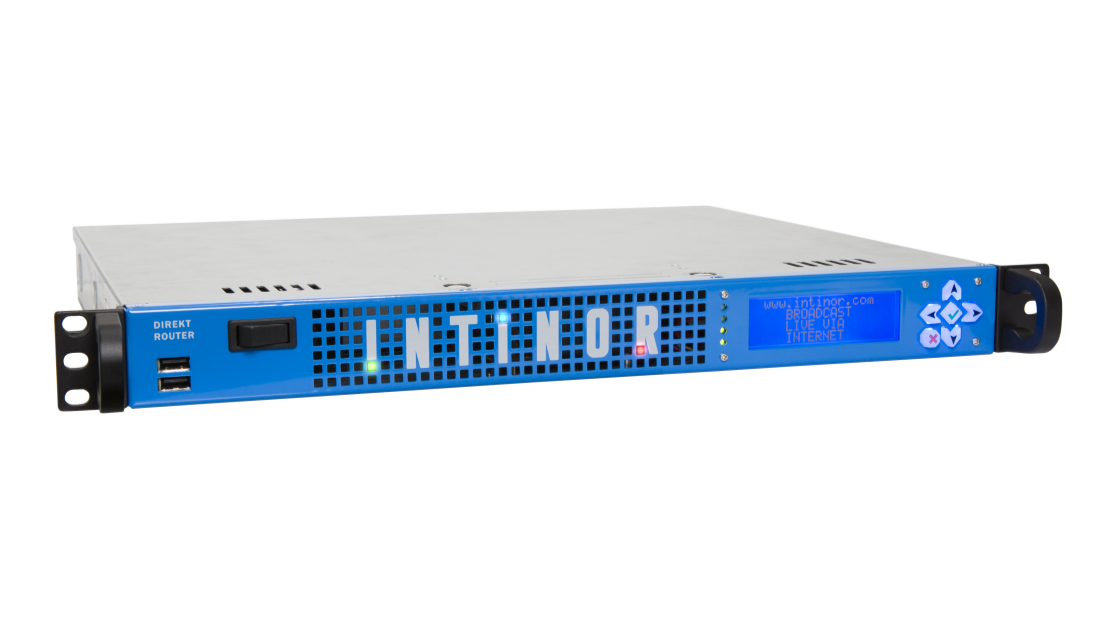

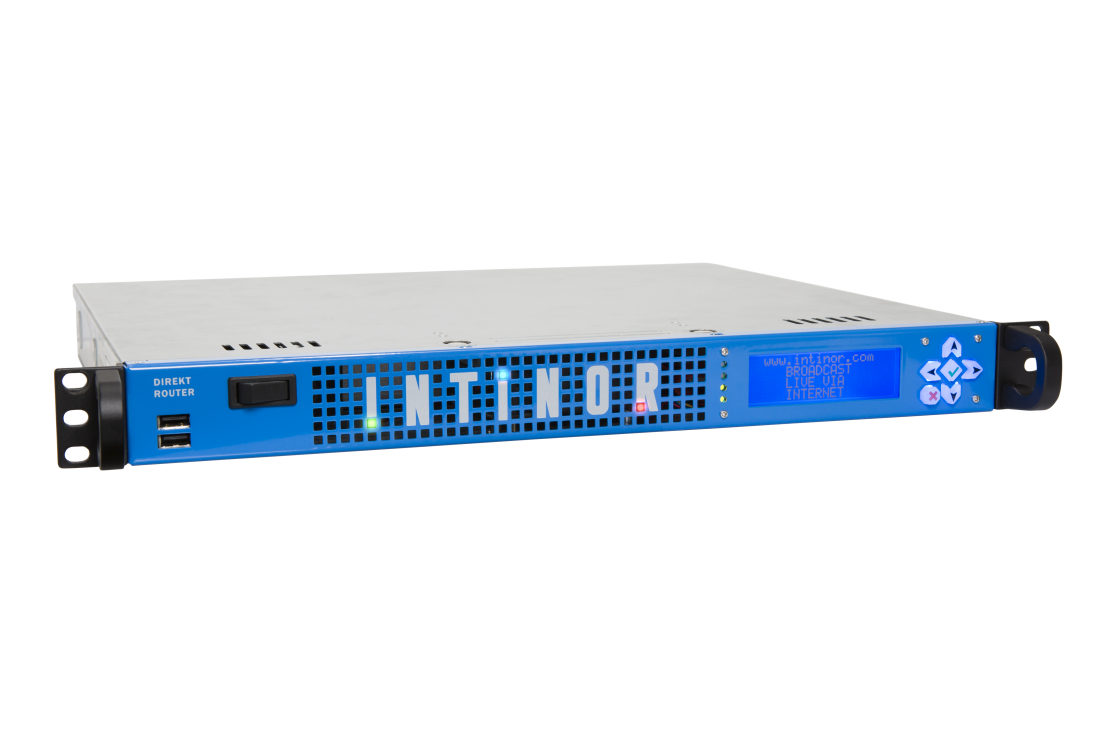

DIREKT ROUTER
“Smart IP stream management and maximum flexibility”
Central hub for managing IP streams, offering maximum flexibility.
The Direkt router is used for connecting video links, changing IP streams between unicast and multicast, re-distributing video over IP networks and managing error correction.
Advanced IP Management
Can be tailored with features like transcoding, multiview, and multiple SDI/NDI outputs effectively transforming it into an advanced video receiver.
Interoperability
Offers the best option for combining sources and destinations with multiple ways of receiving and sending video over IP.
Flexible I/O
Available in rack and smaller Basic & Lite formats. Rack+ options include a powerful CPU for higher performance.

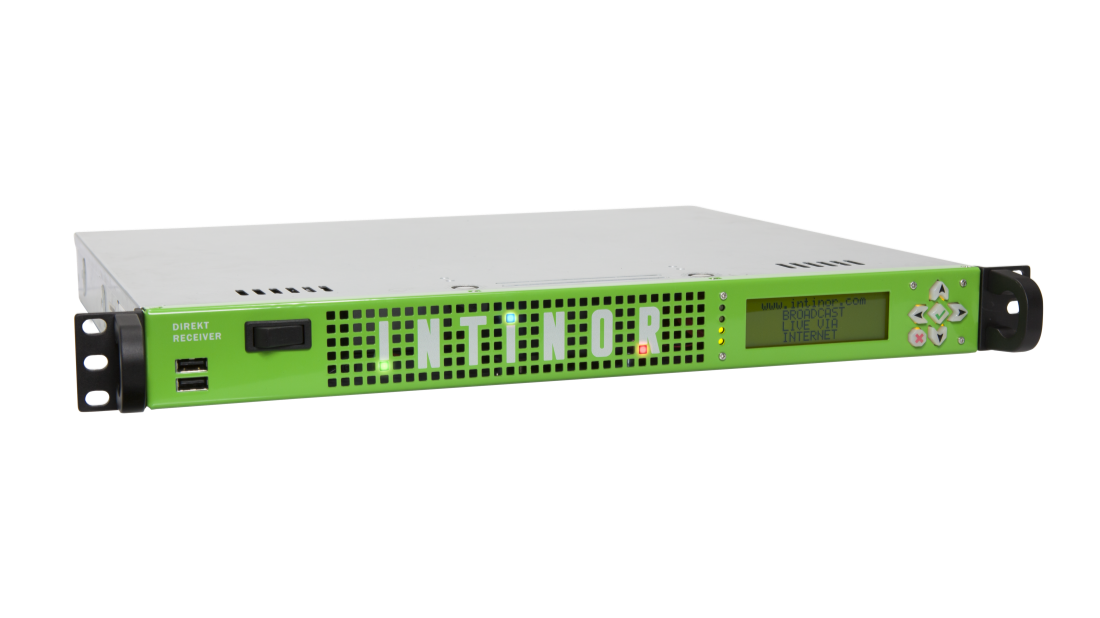

DIREKT RECEIVER
“Adaptive Decoding & seamless output”
Dedicated unit to receive MPEG-TS over IP and output directly to SDI.
Solid Output
Delivers seamless output with standard options including two 3G-SDI outputs (upgradable to 12G-SDI compatibility) and Black Burst sync in.
Adaptive Decoding
Automatically handles variable bitrate on incoming IP streams and detects MPEG2, H.264, or H.265 streams.
Robust Link System
Provides advantages like redundancy, error correction, network debonding, and supervision via IDM.

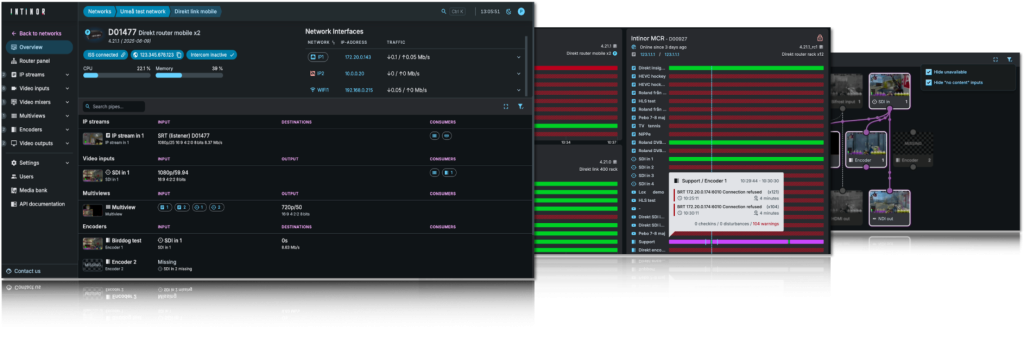

Intinor Direkt Management (IDM)
“Real-time management & Control”
The all-in-one solution for real-time remote management, control, and troubleshooting of your Direkt units and ecosystem.
Real-Time Monitoring
Instant overview of all units, network statuses and connected inputs.
Efficient Troubleshooting
Offers detailed data and statistics across multiple measurement points, allowing users to swiftly identify and resolve the root causes of image disturbances, minimizing downtime.
Mobile Flexibility
Allows management and monitoring directly from a mobile device.
Fully customizable to suit your unique workflow.

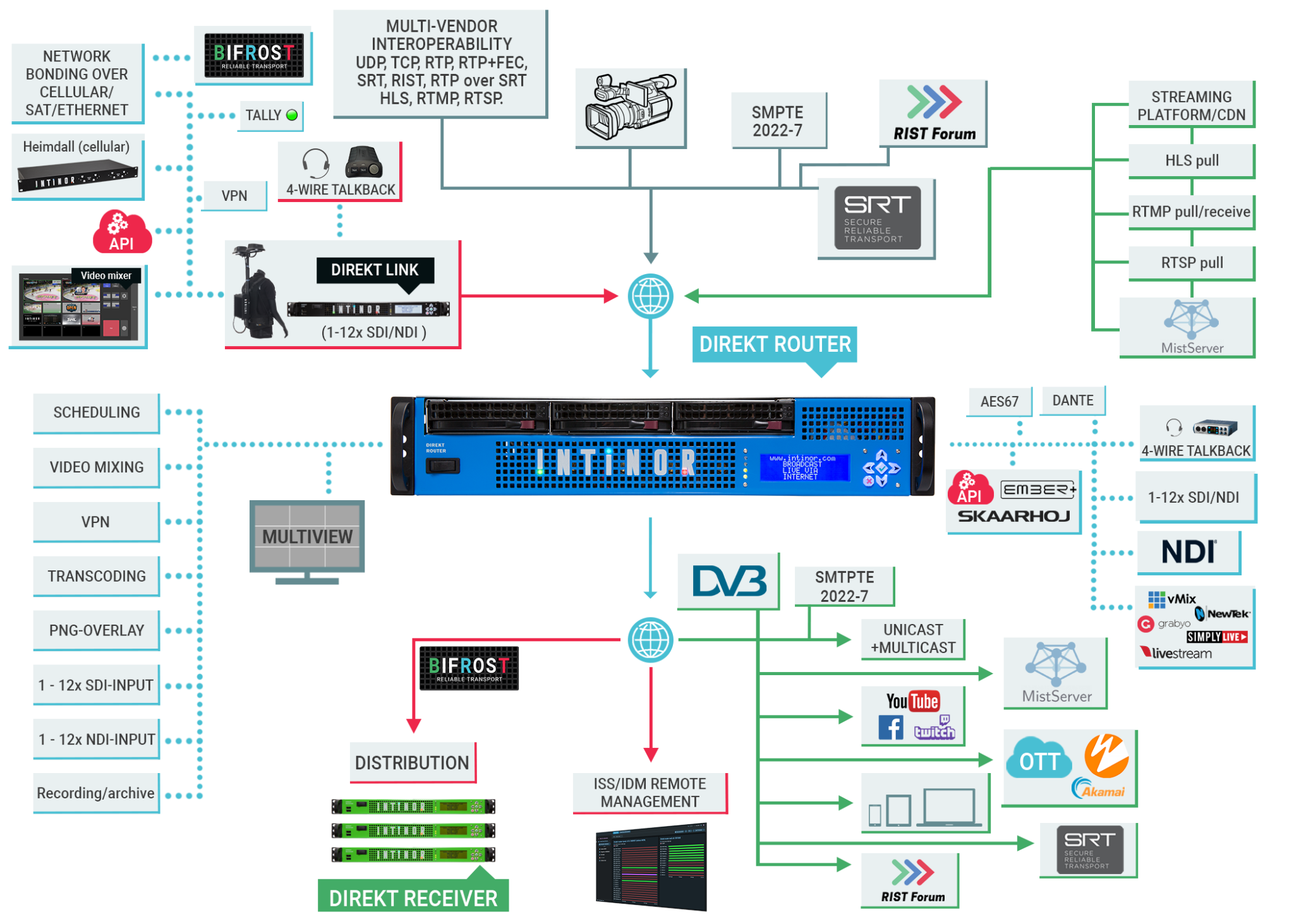

Direkt series offers unparalleled multi-vendor interoperability, allowing you to integrate seamlessly into any existing ecosystem.
Protocol Agnostic
Send and receive video using all major protocols including SRT, RIST (open source), TCP, UDP, RTP, and RTMP for direct integration with CDNs like YouTube and Facebook.Universal Decoding/Encoding
Core units support up to 10-bit, 4:2:2, 4K UHD encoding and decoding.Adaptive Quality
Adaptive encoding parameters automatically adjust to the available network capacity, ensuring your stream maintains the highest possible quality at all times.True path redundancy
Create redundancy across multiple internet paths with SRT over SMPTE 2022-7, which enables seamless protection switching between RTP, RTP+FEC, and RTP.
Extra network interfaces
Add extra external 4G/5G network interfaces with Intinor’s product Heimdall, which when combined with Network Bonding, strengthens the aggregated bandwidth for reliable streaming.
Use Case
Introduction to IDM
NDI Products

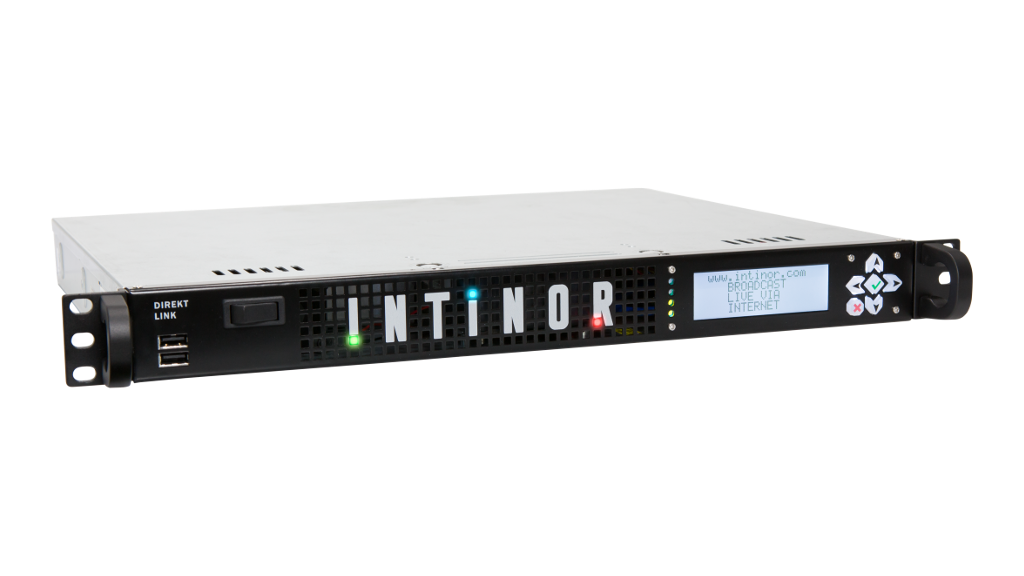

Direkt link NDI rack
Intinor Direkt link NDI™ rack compresses audio and video to MPEG4 AVC (H264) or HEVC* (H265) and is easily configured with unique profiles for different locations of live broadcast.
It has the following digital inputs:
2x Netvideo inputs (HLS + RTMP + RTSP pull also included)
NDI™ input with embedded audio (up to 16 audio channels), option to add more NDI inputs
1x Software encoder (option to add more)
Transmission protocols:
TCP
UDP, RTP
RTP+FEC
RTMP/RTMPS
Bifrost™ (Bifrost Reliable Transport)
SRT and RTP over SRT
Support for 2022-7
Available options:
*HEVC (H265)
Additional NDI inputs
Additional software encoders
RIST
VPN for remote control PTZ, tally and more
And much more

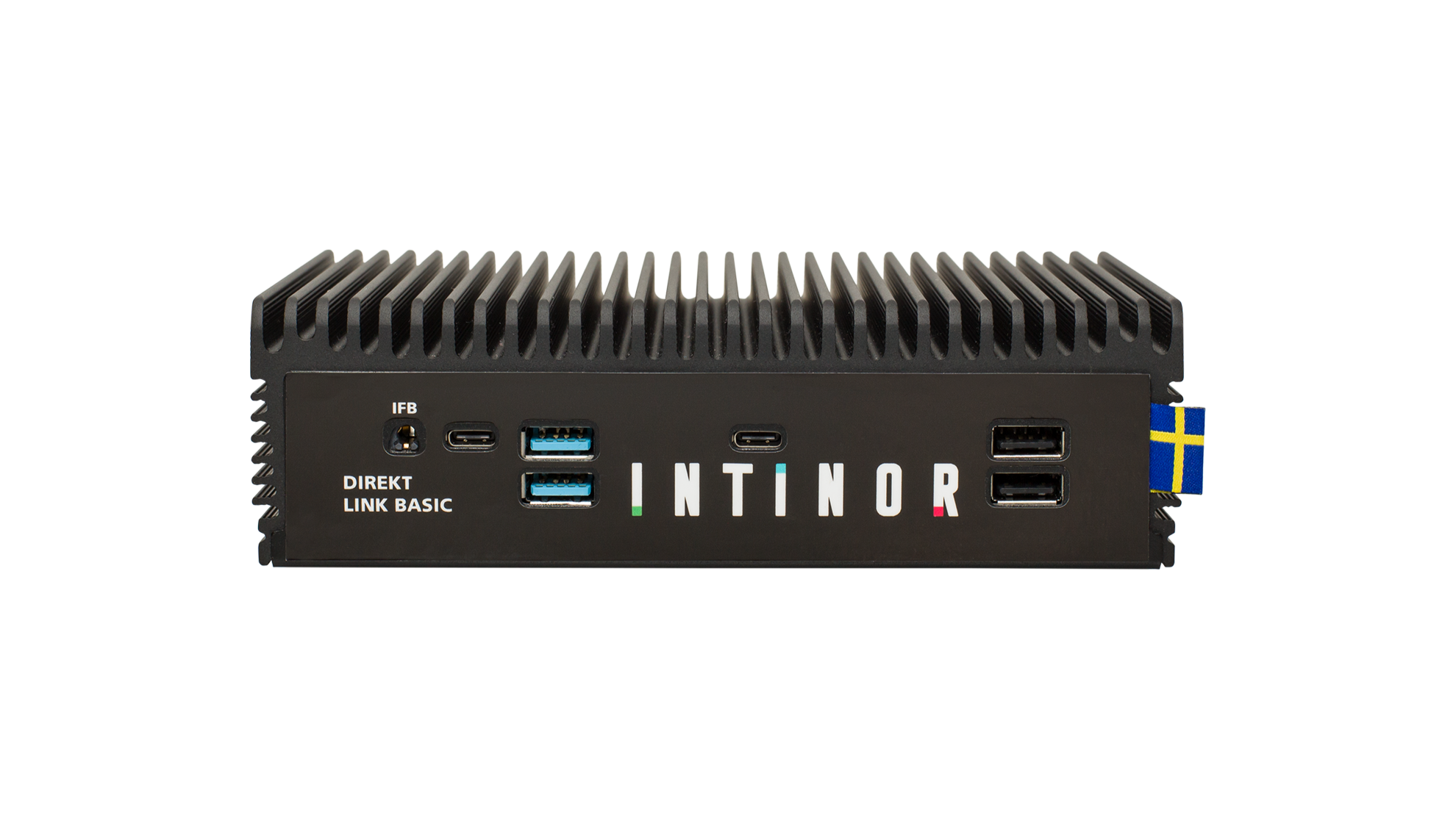

Direkt link NDI basic
Intinor Direkt link basic compresses audio and video to MPEG4 AVC (H264) and/or HEVC* (H265) is easily configured with unique profiles for different locations of live broadcast.
2x NDI™ with embedded audio (up to 16 audio channels),
1x Software encoder (up to 1080p60)
SRT included
All Direkt links are easily managed through IDM (Intinor Direkt Management) and support error correction when used with Intinor receivers.
Transmission protocols:
TCP
UDP, RTP
RTP+FEC
RTMP/RTMPS
Bifrost™ (Bifrost Reliable Transport)
SRT
Available options
*HEVC (H265)
Extra software encoder
Return video
VPN
RIST
And much more..

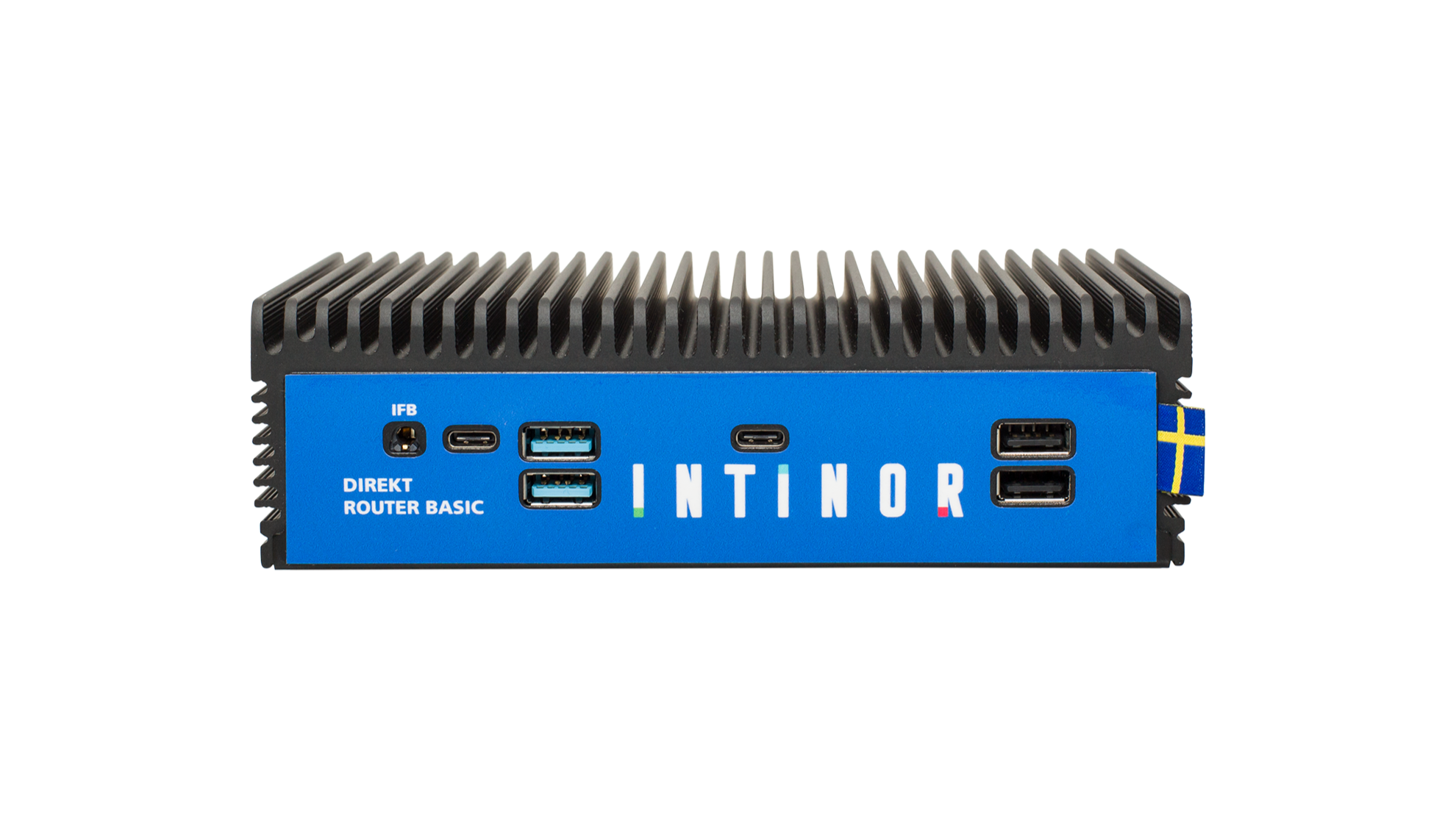

Direkt router NDI basic
Receives incoming IP stream(s) instead of a digital video input. It analyzes the stream and re-sends it, possibly in a different IP network, without adding any delay on the video link. Used to connect different networks, monitor a video stream, re-send video streams to one or multiple receivers or convert incoming IP stream to web TV (RTMP-out).
8x IP stream in included
SRT and RTP over SRT included
Support for 2022-7
Can work as a common ingest point at larger media houses or broadcasters and is perfect as a advanced receiver during live broadcasts where multiple live sources are used.
Direkt router basic can also be fitted with additional options or customizations such as:
Extra IP stream in
Up to 2 software encoders (H264)
HEVC (H265)
Image matrix/multiview
Realtime transcoding
NDI™– outputs
NDI™– inputs
Netvideo inputs (HLS-pull, RTMP-pull)
RTMP-input (Requires Netvideo input)
RIST
VPN
Direkt router NDI studio
Receives incoming Netvideo- and IP-stream(s). Output on NDI to a video mixer, input and send the finished program to other receivers, routers and/or OTT service. Often used for a remote production and in MCRs. Direkt router studio includes:
8x IP stream in (se option for upgrade)
Record and forward
H264/AVC, H265/HEVC, MPEG2 decoder
Bifrost (Forward error correction, ARQ, network bonding and more)
Broadcast out – UDP, PAL and 1080i
adaptive bitrate
8x netvideo inputs on router (HLS & RTMP-pull)
4x NDI out on router
1x DVI/HDMI output
NDI in on Netvideo-inputs
1x software encoder
RTMP output
Stream synchronisation (NTP)
SRT and RTP over SRT included
Support for 2022-7
With high performance it is perfectly fitted for additional options or customisations such as:
SRT in/out
SDI in/out
Additional NDI inputs or outputs
Additional software encoders
Extra IP stream in
Extra netvideo inputs
built-in video mixer
Multiview
RIST
VPN
